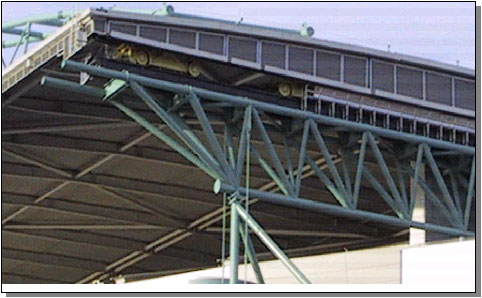

FastFRAME® saves hundreds of hours in the design stage of complex space frame developments. Complete structural frames can be completed in days! Of equal value, the extraction of fabrication data needed for processing is simple!
FastFRAME® also allows you to validate the structure before processing begins. FastFRAME® can model individual nodes which you can view from any angle in wireframe or 3D. Even very complex detail can be viewed and checked.
FastFRAME® provides all of the intersection details for single and multi-pipe intersections including sequencing for construction. Details include full weld preparation information to International Standards.
FastFRAME® automatically calculates all elements within the structure including double ended pipes. This detail can include beveling for weld preparation, not only where this is supported by the machine, but also manual patterns for hand lofting.
FastFRAME® is suitable for the production of flat patterns for rolling,
'Wrap Patterns' or code for CNC controlled machinery.
Compensation for complex multiple intersections and weld preparation are included, these cover all common standards such as AWS, CIDECT and others.
Developments can be used for NC controlled machinery or cut by hand. Output data is generally as patterns via conventional printer or plotter. DXF output allows you to process the ends on your cutting equipment. Each element can be processed via Analogue or CNC controlled pipe cutting machines. Manual Wrap-around templates can also be created for users without specialist equipment.
Highly effective: Save hundreds of hours in design, costing and "right first time" fabrication.
FastFRAME® Software is a purpose built product to develop multiple tube or pipe intersections as in a spaceframe.
The possibility of using our software to produce light aircraft frames was identified by Mr John Zuelhcke from North America Cutting Systems. He suggested that Univair in Denver combine our software with a purpose built tube cutting machine. The machine is fitted with a Inner Logic fine beam plasma and multi-axis Fagor motion controller for complete automation.
Univair produce replacement light aircraft frames and were grinding the tubular ends with a manual template, the process was slow, imprecise and lacked the highest manufacturing standards demanded by the company. The fully automated NC cutting machine took data from the FastFRAME® program and automatically cut each end of the connecting spa's in each frame. The automatic feed system pushes the tube stock through a custom-designed clamping system that spins the tube under the plasma machine torch. Highly accurate components are produced by the system with each end correct for length, angle and relative twist. Production savings are substantial due to improvements in speed and accuracy of the fitup. The high quality of the end cuts has a marked improvement in weld quality and consistency .
