FastBEAMTM is suitable for machine brands such as: Wagner, Peddinghaus, Ficep and others (and is also adaptable to renovated machines with new retro-fitted CNCs). The programming system has a common data entry procedure, allowing preparation of NC programs for different machines with the same procedures. The person entering the data doesn't need to know anything about the actual operation of the Beam line. All the limits, restrictions and peculiarities of the particular machine are built into the programming software.

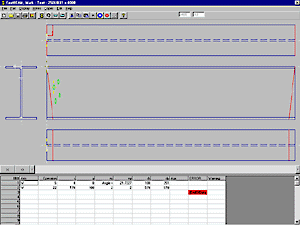

A graphics screen is used for visual checking of the data as it is entered. In the standard view, the vertical scales are exaggerated to provide clarity. Zoom facilities are provided to allow precise checking of details.

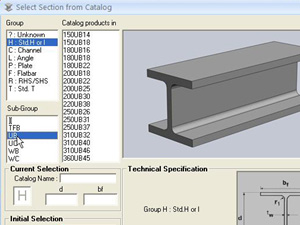

A catalogue of sections is included in the software, so that standard rolled shapes can be called up by name alone. AISC standard connection drilling data for the ends of each section are included in the database. This can be called up for a beam, with just a few key-strokes.
FastBEAMTM includes provision for mitre cuts and drill holes, and has checking facilities that ensure that holes are not drilled in the mitred region. It also has provision for flange and web copes, and will drill a hole at the radies of the cope if the radius and position are within the capability of the machine.
FastBEAM® highlights :
Imports DSTV files, XSteel & StruCAD files.
Full graphical display to ensure accuracy.
Provision for drilled holes, penetrations & slotted holes.
Verification Dimensioning for accurate checking.
Optimized drill sequencing minimizes machine travel.
Concatenated (nested) programs .
Easy to use Graphic Coping and Mitring makes programming a breeze.
FastBEAMTM works as a standalone system that can nest DSTV files and optimize stock via complimentary FastCAM® products MTO and Quote Everything.
In addition, FastBEAMTM will work with DSTV files, compatible with most leading manufacturers, providing both off line processing and DSTV Verification.
FastBEAMTM also supports the latest XML format for DSTV.
NOTE: FastBEAMTM is quoted on a machine-by-machine basis, dependent on the make & model, functions fitted (drilling, sawing, coping, hard stamping etc). Every machine requires custom configuration. A sketch of the machine is useful to us in preparing a quote.
